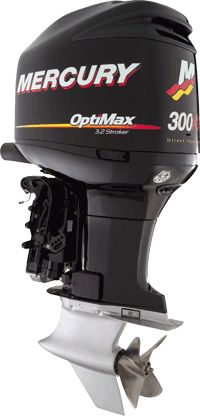

OptiMax 300 XS



Propshaft Rated Horsepower: (HP / kW): 300 (224KW)
Full Throttle RPM Range: 5400-5800 (20" models 5400-6100)
Cylinders: V-6 (60 degree vee)
Displacement: 193 cu. in. (3160cc)
Bore & Stroke: (in)3.63 (92 mm) x 3.11 (79 mm)
Fuel Induction System: 2-Stage Direct Fuel Injection
Ignition System: PCM 07 Digital Inductive
Charging System: 60-amp (756 watt) w/Voltage Regulator
Gear Ratio: 1.62:1, 1.75:1 (SM), (TM) or 1.75:1 (FM)
Lubrication System: Electronic Multipoint
Recommended Oil: Mercury Premium Plus (TC-W3)
Fuel Requirements: 91 Octane Minimum (R+M)/2 (96 RON)
Rotation: Right or Left-Hand (FM), (SM) Right-hand (TM)
Shaft Length: (inches)20/25/30
Shaft Length: (mm)508/635/762
Weight: (lbs / kg)(L) 505 lbs. (229 kg) (XL) 517 lbs. (235 kg) (XXL) 534 lbs. (242 kg)
Warranty: Two-year limited warranty for recreational boating and three-year limited corrosion warranty. One-year limited Mercury Product Protection Plan available.
